Rinnai Linear 800 double sided (through wall) with FlameTech - including single story flue system
- In stock, ready to ship
Above RRP is for the double-sided model.
RRP includes the engine and burn media
RHFE0800D1L (LPG)
Designed and made in New Zealand
With its eye-catching design, this beautiful fire is sure to become the centrepiece of your home.
With FlameTech, flames emanate from the logs themselves just as they do in real life. Flames also burn more realistically thanks to class-leading flame height. The new technology even extends to the embers, allowing them to glow more brightly and naturally.
All fires in the Linear Collection are available in single and double-sided variants.
Product Details
Suitable for indoor installations only.
Ideal for living rooms and open plan areas. The versatile power flue system makes for easy installation in almost any living space, including bedrooms.
Heating areas
- Upper North Island, up to 123 m²
- Central and lower North Island, up to 85 m²
- South Island, up to 71 m²
IMPORTANT: Gasfitters and builders
Linear models have adjustable wallboard support rails. The gasfitter will adjust these based on the thickness of the wall lining. It's important the gasfitter gets the wall lining information from the builder. If this is not done the wall lining will not sit flush (if a flush installation) and the cavity can overheat causing the fire to cut out.
BUILDERS: Due to the heat from the fire ensure a 50 mm clearance around the unit, including the rear (if a single-sided model). This information is included in the framing dimension pages of the installation guide. Use this in conjunction with the 'Linear additional wall lining detail' to ensure a successful installation.
Technical Specifications
INPUT
15-35
MJ/h
OUTPUT
3.5-7.7
kW*
EFFICIENCY
75%
* Will vary according to gas type and flue configuration
Available for Natural Gas or LPG, specify at the time of purchase.
2-speed fan. Heat is distributed from the top of the appliance.
Base of the combustion chamber, LHS, on the convection fan access panel
½ " BSP, the gas supply terminates inside the heater—lower left hand side
Continuous spark electronic ignition.
37-45 dB(A)
Power flue. Inner 50 mm, outer 70-80 mm. Appliance MUST be installed with a Rinnai flue system.
- High 50 W
- Standby less than 8 W
The Linear has a 1.5 m cord with a three pin plug supplied. The power cord passes through a slot in the right hand side of the appliance.
Flame failure sensing system, pressure relief, overheat safety switch, air temperature sensor, thermal fuse, overcurrent fuse, and spark detectors

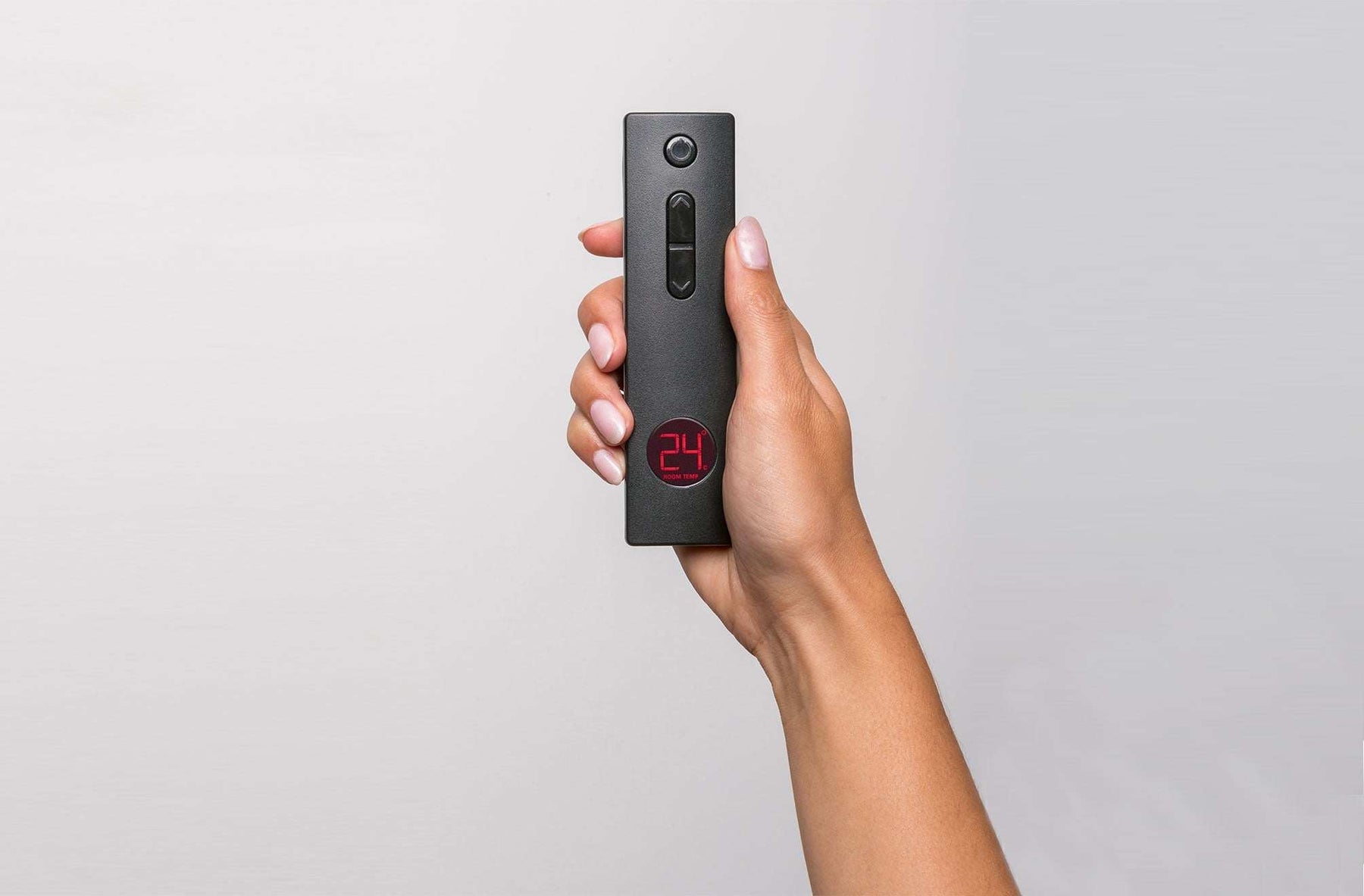

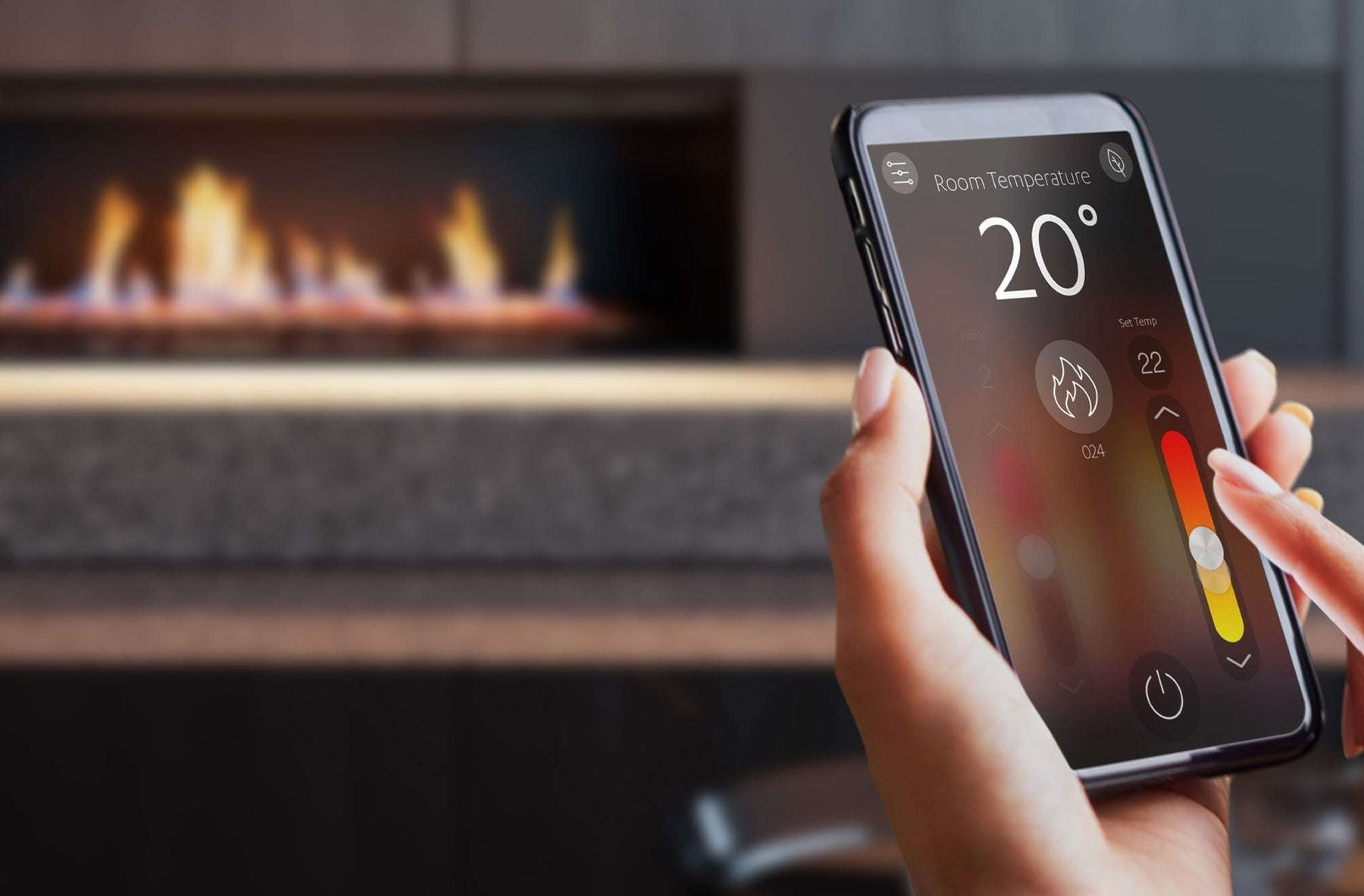

The Linear can be operated using the basic infra-red remote, or for more features, such as timers and thermostatic control, using Rinnai's Wi-Fi fireplace controller app available from the Apple App store or Google Play.
100 kg
The minimum clearances listed below are measured from the edge of the glass.
- Above - 400 mm
- Sides - 400 mm (includes side walls)
- In front - 1000 mm
- These are the unit dimensions only, not the framing/cavity dimensions
- The centre of the glass is NOT the centre of the appliance
- Viewable glass dimensions 800 x 505 mm
Energy Safety Supplier Declaration of Compliance: Declaration number - 1907520195
