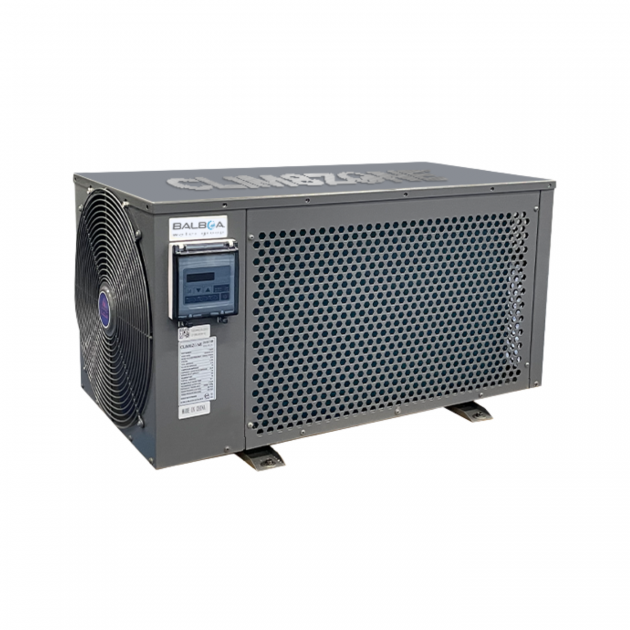

Balboa Clim8zone™ Spa Heat Pump

The Balboa Clim8zone™ Heat Pump is a next-generation spa heating solution designed for serious efficiency, quiet performance, and seamless integration with Balboa BP systems. Built for colder climates, this unit keeps your spa water hot while dramatically reducing running costs — even when the temperature drops well below zero.

Unlike traditional electric heaters that chew power, Clim8zone™ uses smart heat-pump technology to deliver up to 5–10× the efficiency, and in some conditions up to 15×, meaning more heat for less energy. That’s real savings, every soak.

Why You’ll Love It

Cold-climate capable – operates in ambient temperatures as low as -20°C

Ultra-quiet operation – runs at under 50 dBA

Smart variable-speed compressor with adaptive algorithm

Fully integrated with Balboa BP systems - no separate heating pump required

Flexible heating control – run the heat pump only, electric heater only, or both together when needed

Massive energy savings compared to traditional spa heaters

Perfect for spa owners who want performance without the power bill shock.

Technical Specifications

Product Type: Spa Heat Pump
Manufacturer: Balboa
Box Quantity: 1

Electrical

Voltage: 230V

Frequency: 50Hz

Power Consumption: 1.30 kW

Current: Min 2.4A / Max 6.3A

Compatibility

Designed for Balboa BP system upgrades

Requires BP2100 controller and iTouch 3

If using a TP touch pad, system can be set up with an iTouch 3, after which the TP touch pad resumes control

Installation & Connections

Base-mounted with 4 feet

1.5" blue plastic female sockets for plumbing connections

Live and neutral connect directly to PCB via two spade connectors

Dimensions

Length: 800 mm

Width: 310 mm

Height: 540 mm

SKU - MODEL CODE: HT-CLM60

*PRICING INCLUDES THE PIPE KIT

Bottom line

If you want quiet operation, serious efficiency, and a factory-integrated solution that just works with your Balboa system, Clim8zone™ is the smart upgrade. Traditional heaters are old news - this is how modern spas stay hot.
