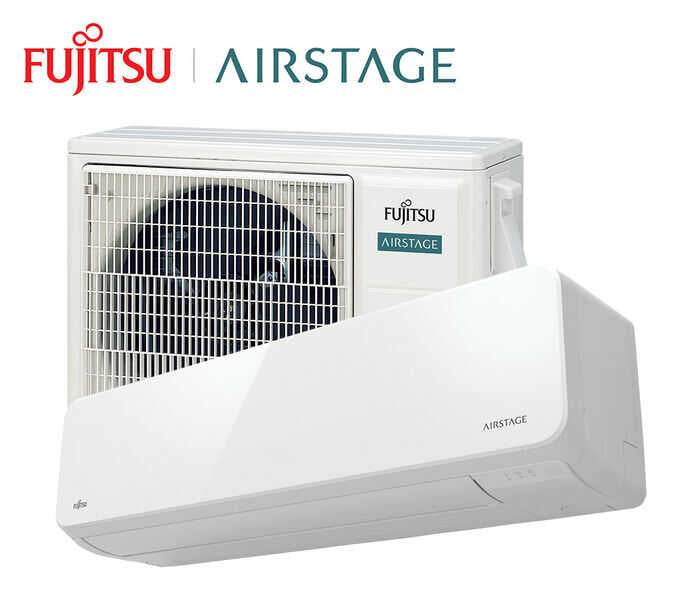

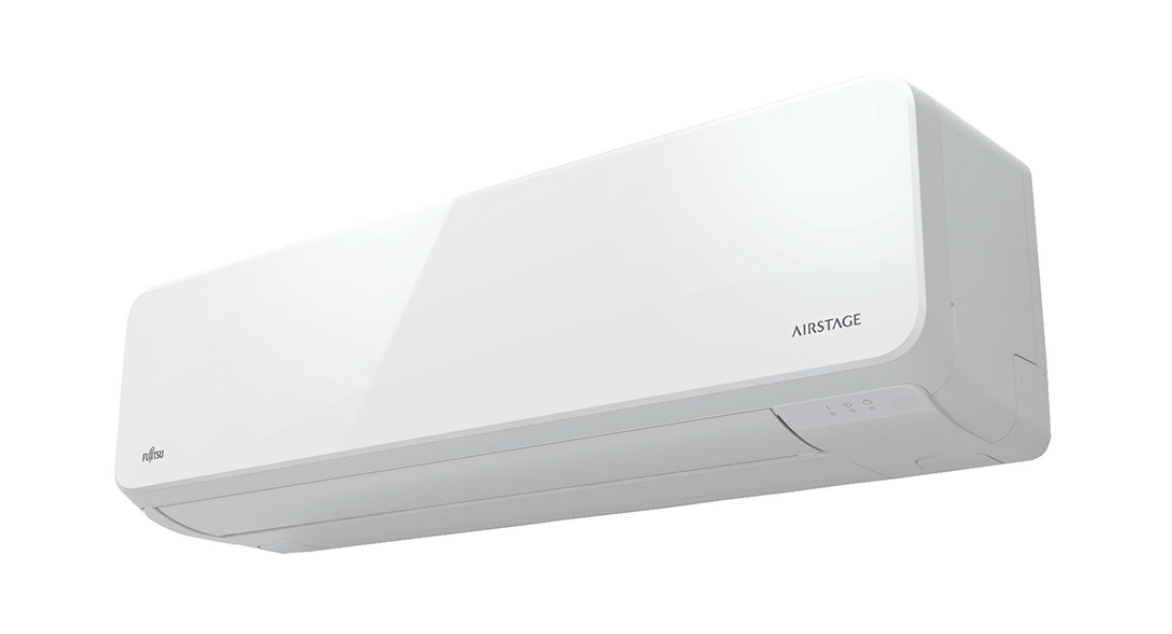

FUJITSU ASTH24KNTA 8KW AIR CONDITIONER / HEAT PUMP
FUJITSU ASTH24KNTA 8KW AIR CONDITIONER / HEAT PUMP
Couldn't load pickup availability
Great for large rooms, the Fujitsu's Comfort range of wall mounted heat pump/air conditioning units provide energy efficient, all-year-round climate control for the home and uses R32 refrigerant, which has a 67 percent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner*. Other features include super-quiet mode and powerful operation mode.
The new Fujitsu General Comfort range of wall-mounted heat pumps/air conditioning units is the latest solution for energy-efficient, all-year-round climate control for the home. Slim, Modern and Efficient
The new Fujitsu General Comfort range of wall-mounted heat pumps/air conditioning units is the latest solution for energy-efficient, all-year-round climate control for the home. Slim, Modern and Efficient

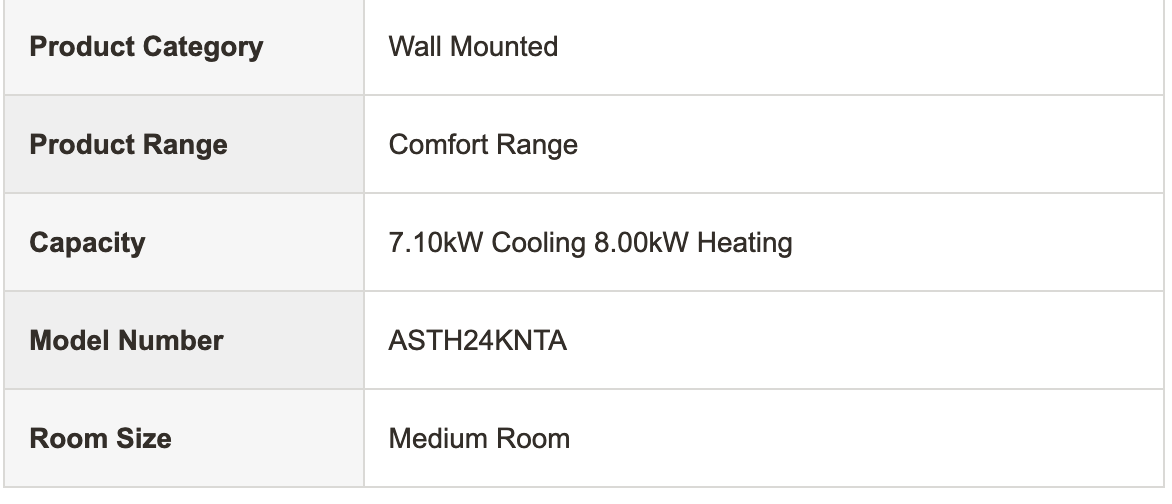

Technical Specifications
| Indoor unit | ASTH24KNTA |
| Outdoor unit | AOTH24KNTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |

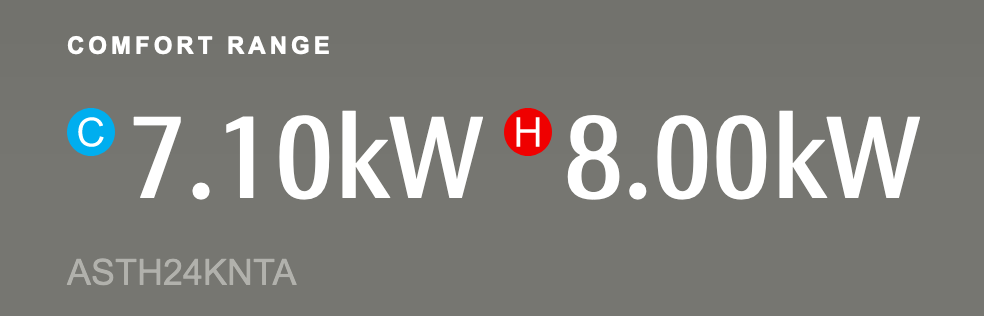

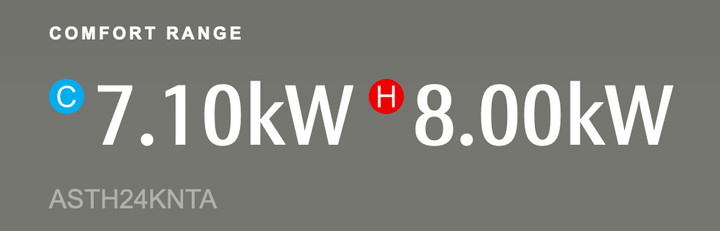

| Cooling Capacity kW (Rated (Min - Max)) | 7.10 (1 - 8) |
| Heating Capacity kW (Rated (Min - Max)) | 8.00 (1 - 9.6) |
| Input Power Cooling kW (Rated (Min - Max)) | 2.2 (0.16 - 3) |
| Input Power Heating kW (Rated (Min - Max)) | 2.08 (0.16 - 2.74) |
| EER Cooling kW/kW | 3.23 |
| COP Heating kW/kW | 3.85 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3.5 / 3 / 3.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.639 / 5.982 / 6.66 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.329 / 4.407 / 3.573 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.143 / 4.897 / 5.288 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.35 / 4.779 / 4.047 |
| Running Current amps (Cooling / Heating) | 9.6 / 9.2 |
| Moisture Removal l/hr | 3.2 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 50 / 31 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 48 / 31 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 55 / 56 |
| Outdoor Sound Power dBA | 67 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 336 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 311 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 280 x 980 x 240 |
| Indoor Unit Weight kg | 12.50 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 632 x 799 x 290 |
| Outdoor Unit Weight kg | 39.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (15) |
| Max Height Difference m | 25 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,200 |
